Redefine
magnetic flow.
From hours to minutes. Reconfigure your line without mechanical changeover — movers float, dock and route on one shared magnetic track.
One platform, three movers and Studio.
From 10 kg light high-speed to 100 kg standard load — three mover series on one magnetic track ecosystem, all planned, configured and monitored by MAGVIX Studio: the control software that runs the entire line.
O Series
Light high-speed · 3C electronics, pick & place feeding

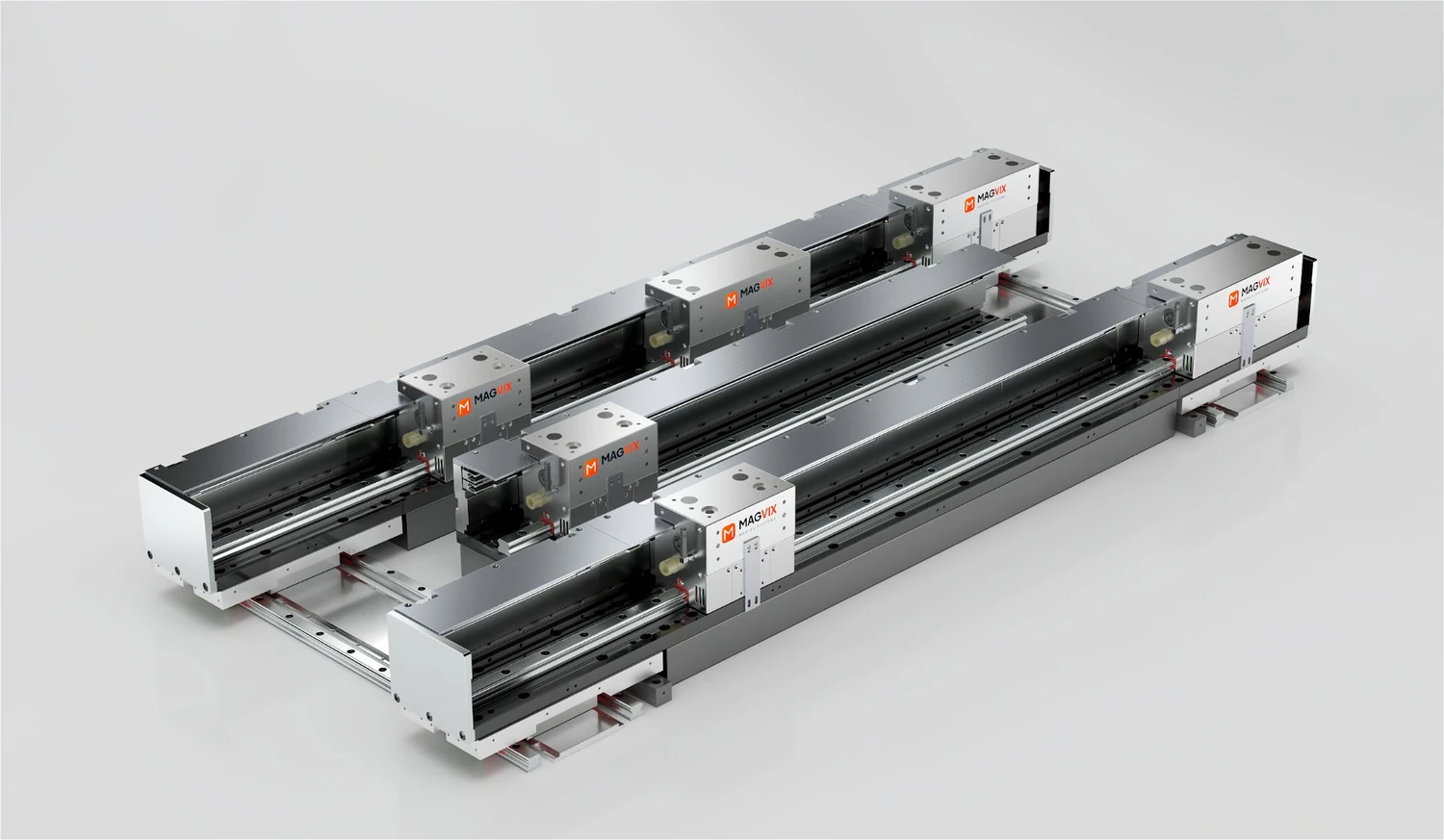

S Series
Precision small-load · semiconductor, precision assembly
L Series
Medium-load · lithium battery, medical devices
MAGVIX Studio
The brain of the platform — plan the line, configure stations and movers, and watch every mover in real time. No low-level motor code required.
Every failure point of a conveyor, engineered out.
No belts, no chains, no gears. The mover levitates on a magnetic air gap — so nothing touches, nothing wears, and nothing needs grease.
Zero mechanical wear
Contactless linear-motor drive means there is no transmission to wear out. The only thing moving is your product.
Maintenance free
No lubrication points, no tensioning, no planned line stops for mechanical service across the system lifetime.
Cleanroom quiet
Below 60 dB(A) at full speed and zero particle generation — ready for medical, semiconductor and food lines.
Over 90% efficiency
Direct electromagnetic drive converts power straight into motion — no gearbox losses, no idle chain drag.
Many movers, one line
Every mover positions independently on a shared track. Add or remove stations in software — throughput scales, not footprint.
Power on the move
Onboard supply energizes grippers, servos, heating or vacuum while the mover runs — more process steps per meter of line.
Traditional line vs. MAGVIX
Belt & Chain Conveyor
- Fixed tact — changeovers take hours
- ±0.2 mm typical repeat accuracy, secondary positioning needed
- One carrier per pitch — throughput capped by mechanics
- Wear parts, lubrication, dust and full-line stops for repair
MAGVIX Direct-Drive
- One-click recipe changeover — add or drop stations dynamically
- ±10 µm absolute positioning, no secondary locating
- Multi-mover choreography doubles line throughput
- No contact, no wear, no dust — service without stopping the line
A traveling magnetic field carries every mover.
Linear-motor coils embedded in the stator track generate a traveling wave. Permanent magnets on each mover lock to that wave — thrust without contact, position read absolutely by magnetic scale.
- Linear motor drive — stator coils create the traveling field
- Contactless thrust — electromagnetic force across an air gap
- Absolute positioning — precision magnetic scale, ±10 µm
- Wireless dispatch — MAGVIX Link radios coordinate every mover
Built for demanding production.
Eight industries already run MAGVIX magnetic conveying on the factory floor.
Numbers our customers measure.
100 ppm on a 4.8 m loop
15 movers on a compact ring line, 24/7 continuous production with non-stop maintenance.
Changeover: 2 h → 15 min
Vertical transfer line for blade-battery tab welding — no secondary positioning, ±10 µm at the weld head.
24 ppm through a junction maze
Complex-switch layout with pneumatic grippers keeps cells scratch-free at full inspection speed.
Ready to levitate your production?
Tell us your process — load weight, tact time, layout and PLC protocol. We return a 3D model, simulation run and itemized quote within 48 hours.
